Security Equipment and Systems
CCTV — fixed dome camera
A fixed dome camera that gives reliable coverage of rooms, corridors, entries or external areas. It is usually the quiet workhorse of a CCTV system: discreet, tamper-resistant and suited to continuous coverage.
Camera gaps quickly become operational gaps. Good dome coverage helps operators assess incidents in real time, supports investigations later, and gives guards confidence about what is actually happening before they respond.
Feeds the video management system and should be paired with lighting, intrusion detection and access-control events. When an alarm occurs, the right camera view should appear automatically so the operator can verify the event before dispatch.
Agilient designs camera coverage from the risk outward: camera purpose, field of view, lens and lux levels, retention, privacy, analytics use cases, VMS integration and tender-ready specifications.
- AS/NZS 62676
- Privacy Act 1988
- APPs
- ISM CCTV controls
- PSPF retention requirements

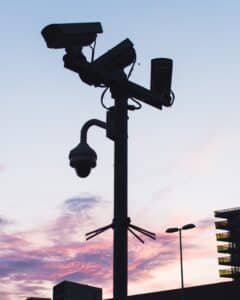

CCTV — PTZ pole camera
A steerable camera used to follow activity across larger external areas such as gates, fence lines, car parks and approaches.
PTZ cameras are useful when something is already developing, but they cannot replace fixed coverage. A PTZ pointed in the wrong direction can create false confidence if the rest of the camera design is weak.
Usually controlled from the security control room and paired with fixed cameras that maintain constant coverage. Alarm triggers can call up PTZ presets for fence alarms, gate events, duress or after-hours movement.
Agilient reviews PTZ placement, blind spots, preset logic, fixed-camera ratios, operator workflow and training requirements so the camera supports response rather than becoming a shiny but underused control.
- AS/NZS 62676
- ASIO Technical Notes (perimeter CCTV)
Electronic access control — card reader
A card, fob or mobile-credential reader that controls who can pass through a door, gate or turnstile.
Access control turns security policy into day-to-day enforcement. It limits movement by role, time and zone, and creates the audit trail needed to investigate exceptions.
Should connect to CCTV, intrusion detection, visitor management and HR joiner/mover/leaver processes. Door-forced or denied-entry events should create a clear operator workflow, not just another unreviewed log entry.
Agilient designs zone permissions, credential strategy, joiner/mover/leaver controls, integration requirements and entitlement audits so access rules stay aligned with real roles and clearances.
- AS/NZS 2201 intrusion / access
- PSPF Personnel
- ISM access controls
Biometric reader
A higher-assurance reader that verifies a person using a biometric factor such as fingerprint, iris or vein pattern, usually alongside a card or PIN.
Biometrics are useful where a stolen card is not enough assurance. They also introduce privacy, reliability and fallback issues, so they should be reserved for boundaries where the risk justifies the extra control.
Works through the access-control system as an additional factor. Denials, failures and override events should be visible to operators and supported by CCTV verification and clear fallback procedures.
Agilient assesses whether biometrics are justified, which modality fits the user group, how privacy impacts will be managed, and how the reader should integrate with access control, CCTV and operational procedures.
- ISM access controls
- PSPF Personnel (NV1+)
- Privacy Act 1988
Access-control system controller
The controller and software layer that makes readers, doors, gates, turnstiles and permissions behave as one access-control system.
The reader is only the visible edge. The controller is where permissions, schedules, anti-passback, alarms and integrations live. If this layer is unmanaged, access permissions drift and audit evidence weakens.
Should connect with HR, visitor management, CCTV, intrusion detection, gatehouse operations and the security control room. Door events need to trigger decisions, not disappear into separate systems.
Agilient reviews the access-control architecture, controller placement, permission model, door schedules, integration logic and entitlement evidence so the system remains governable over time.
- AS/NZS 2201 intrusion / access
- Privacy Act 1988
- PSPF Personnel
- ISM access controls
Security guard / patrol
A trained human presence at the gate, reception, patrol route or response point. Guards verify exceptions, help visitors, challenge suspicious behaviour and respond when technology raises an alarm.
Technology detects; people decide and act. Guarding is most valuable when posts, patrols and escalation rules are designed around actual site risk rather than generic coverage hours.
Guard routines should connect to CCTV, radio, duress, visitor management, patrol checkpoints, gatehouse procedures and the control room.
Agilient reviews guard-post purpose, patrol routes, SOPs, supplier performance, licence compliance and escalation workflows so guarding effort is targeted and measurable.
- Security Industry Act (state)
- ASIAL Class 1 / 2 licensing
- PSPF Personnel
Duress alarm
A discreet button, fob or mobile alert used when staff are threatened, confronted or under coercion.
Duress is a staff-safety control, not just an alarm input. It shortens the path from a person in trouble to a verified response, which matters for reception, interview rooms, cash handling, lone work and high-risk customer interactions.
Should raise a priority alarm with location, identity where appropriate, camera coverage and a defined response path for guards, managers or police.
Agilient designs duress coverage, device selection, monitoring workflow, escalation rules, test schedules and scenario exercises aligned to WHS duties and the site risk profile.
- AS 4485 Workplace duress alarm systems
- WHS Act 2011
- ISO 22320 emergency response
Intrusion detection (IDS)
An IDS detects unauthorised presence or movement after-hours or inside restricted zones. PIR is the familiar sensor shown here, but a complete system can include door contacts, glass-break, vibration, tamper and alarm-processing logic.
IDS turns a locked building into a monitored building. Poor zoning creates nuisance alarms; good zoning gives operators a credible starting point and helps responders understand where to go first.
Should be monitored by the control room or a Grade A monitoring centre, correlated with CCTV, access-control events and guard patrols. AI can help triage patterns, but response decisions should remain human-confirmed and auditable.
Agilient designs sensor coverage, zoning, false-alarm reduction, CCTV/access-control correlation, monitoring workflows and response testing so alarms are credible and actionable.
- AS/NZS 2201 intrusion detection
- ASIAL Grade A1 monitoring
- Privacy Act 1988
- ISM intrusion controls
AI-assisted detection & analytics
AI-assisted analytics help identify events that matter across CCTV, access control, intrusion alarms and other sensors: a person in a restricted zone, a fence climb, a vehicle in the wrong place or a pattern of alarms that suggests a real incident.
Used well, AI reduces noise and operating cost. It helps teams verify alarms before dispatch, focus patrols on confirmed events and cover large sites where people cannot watch every camera or perimeter point.
Should turn several weak signals into one actionable alert in the control room. For example: a camera detects movement, a perimeter sensor confirms it, the nearest view is presented, and an operator verifies before challenge or dispatch.
Agilient treats AI as a governed control: define the threat scenario, choose interoperable platforms, test false alarms, manage privacy, avoid facial recognition unless justified and lawful, keep a human in the loop and build in regular assurance.
- AS/NZS 62676
- AS/NZS 2201
- Privacy Act 1988
- Australian Privacy Principles
- PSPF Physical Security
Glass-break sensor
An acoustic sensor near windows or glazed entries that listens for the pattern of breaking glass.
It detects forced entry at the envelope, before a person is already moving through the building and triggering internal sensors.
Works through the intrusion system, with CCTV and access-control events used to verify the alarm. It should be paired with glazing that delays entry, not only detects it.
Agilient specifies sensor placement, sensitivity, alarm zoning, CCTV pull-up and glazing recommendations so the control is credible in the actual room.
- AS/NZS 2201
- AS 2208 safety glazing
Protection of services infrastructure
The power, communications, fuel, water, fire, plant-room and riser services that keep the site operating.
Strong doors and cameras do not help if power, communications, cooling or fire services can be easily damaged or isolated. Service resilience belongs in the security risk assessment and business-continuity conversation.
Critical routes and dependencies should be mapped, single points of failure identified, and high-consequence services protected with access control, barriers, tamper detection, CCTV, lighting, redundancy and response procedures.
Agilient reviews exposed routes, plant-room and riser access, switchboards, comms entries, contractor access, redundancy and treatment options, then turns that into a proportionate uplift plan ready for design or assurance.
- PSPF Physical Security
- SOCI Act where applicable
- AS/NZS ISO 31000
- AS/NZS 5050
- AS/NZS 3000
- WHS Act 2011
- ISO 22301
Perimeter fence
The first physical boundary — fence type, height, anti-climb topping, footing, gate count and visibility all chosen against a defined intruder-class.
A fence is the visible deterrence and the first delay layer. Time-to-defeat the fence is the time the inner layers buy to detect, assess and respond.
Often paired with perimeter intrusion detection - sensor cable, microwave, radar, thermal analytics or fence-mounted vibration sensors - with CCTV cued by detection and alarms routed to the security control room.
Fence-type selection against threat class, AS 1725 specification, line-of-sight and stand-off design, gate count rationalisation, sensor selection, false-alarm tuning, video verification and response workflow.
- AS 1725 chain-link / wire fences
- AS/NZS 2201 intrusion detection
- PSPF Physical
- ASIO Technical Notes
Vehicle gate + boom
A controlled vehicle entry point, usually a gate or boom supported by ANPR, intercom and gatehouse verification.
The gate is the weak point in every perimeter because it must open. Geometry, screening and backup controls decide whether it actually delays and verifies vehicles.
Works with ANPR, intercom, CCTV, access control, guard procedures and HVM barriers so vehicles are slowed, checked and recorded before entry.
Agilient specifies gate type, screening workflow, ANPR and intercom integration, gatehouse procedures and HVM pairing.
- PSPF Physical
- ASIO Technical Notes (vehicle access)
- PAS 68 / IWA 14 (HVM)
ANPR camera
Automatic Number Plate Recognition camera that reads, logs and matches vehicle plates against an allow/deny list.
ANPR speeds approved entry, flags unknown vehicles and creates a searchable audit trail for incidents or repeat approaches.
Feeds access control, the gate or boom, VMS recording and the gatehouse workflow. Vehicle allow-lists need the same governance as staff access.
Agilient reviews camera choice, capture angle, lighting, list management, privacy, and integration with gates, intercoms and the control room.
- AS/NZS 62676
- ISM access controls
Bollard / hostile-vehicle mitigation
Static or active vehicle barriers, including bollards, planters and kerb geometry, designed to stop or slow a hostile or accidental vehicle approach.
For public entrances and high-profile sites, HVM must be based on the real approach speed and angle. A barrier in the wrong place can look reassuring but fail in practice.
Works with road geometry, gates, access control, CCTV and emergency egress so approved vehicles can move while hostile approaches are slowed or stopped.
Agilient assesses vehicle dynamics, selects suitable rated treatments, checks operational impacts and prepares the design hand-off for engineers and certifiers.
- PAS 68
- IWA 14
- AS 3845 road-safety barriers
- PSPF Counter-Terrorism
Gatehouse / guard hut
A staffed post at the vehicle entry where guards verify drivers, deliveries and exceptions before vehicles move deeper into the site.
A gatehouse only works when the guard has clear authority, usable systems and tested procedures. Otherwise it becomes a passive checkpoint.
Uses local CCTV, ANPR, intercom, visitor management, radio and escalation paths to the control room and site managers.
Agilient designs gatehouse procedures, guard instructions, workstation layout, escalation rules and supplier performance measures.
- PSPF Personnel
- Security Industry Act (state)
- ASIAL Class 1 / 2 licensing
Security lighting
Pole, wall or bollard lighting that supports CCTV performance, deterrence and safe staff movement after-hours.
Cameras need usable light, not just bright light. Poor lighting creates glare, shadows and false confidence.
Lighting should match camera fields of view, pedestrian routes, patrol routes and control-room switching so operators can illuminate a specific zone when needed.
Agilient models lux levels, checks glare and dark zones, aligns lighting to camera specifications and recommends practical retrofit options.
- AS 1158 lighting for roads and public spaces
- ISM CCTV controls
Security control room
The nerve centre where operators bring together CCTV, access control, intrusion detection, duress, intercom, lighting, guards and emergency contacts.
Separate technologies only become useful when someone can see, verify, prioritise and respond. The control room turns alerts into decisions.
Receives alarms, pulls relevant camera views, tracks movement, activates approved response actions and records an auditable decision trail.
Agilient designs control-room layouts, console ergonomics, integration requirements, operating procedures, shift handover, exercises and monitoring-provider performance measures.
- ISO 11064 ergonomic design of control centres
- AS/NZS 2201
- AS/NZS 62676
- Privacy Act 1988
- ISM monitoring controls
- ASIAL Class 1 / 2 licensing
Comms cabinet
A lockable cabinet for switches, patch panels, fibre terminations and local security or IT network equipment.
A poorly controlled comms cabinet gives insiders or contractors a simple place to tap, disconnect or damage the network.
Cabinet access should be logged, alarmed and visible to CCTV, with vendor access tied to approved work orders.
Agilient specifies cabinet location, locks, tamper contacts, CCTV pairing, alarm tuning and contractor access rules.
- AS/NZS ISO/IEC 11801 cabling
- ISM physical security
- PSPF Information Security
Server rack
A locked rack for servers, storage and network gear inside a server room or data hall.
This is where critical systems physically live. If rack or room access is loose, logical security starts from a weak foundation.
Rack access, environmental alarms, out-of-band management and building services should be monitored through defined security and continuity workflows.
Agilient reviews server-room hardening, rack locks, access logging, environmental alarms, out-of-band design and continuity dependencies.
- TIA-942 data centre
- ISM physical security
- AS 3555 forced entry
Secure / SCIF room
A certified room for classified or highly sensitive work, using rated construction, acoustic or RF treatment, endorsed locks and approved containers.
For classified work, the room is part of the asset. Construction, access rules and staff procedures must align before certification can be relied on.
Works with access control, biometrics where justified, lobby CCTV, door-held alarms, container registers and classified-handling procedures.
Agilient prepares SCIF and secure-room design packages covering wall ratings, acoustic and RF treatment, containers, access control and certifier hand-off.
- ASIO Technical Notes 5/12 SCIF
- PSPF Information Security
- AS 3555 forced entry
X-ray scanner / mail screening
Screening equipment at reception, mail rooms or loading docks used to inspect bags, parcels and mail before they enter controlled areas.
Screening creates a managed checkpoint between an external sender or visitor and the internal asset. It must match the threat profile and WHS setting.
Operated by trained staff, with clear escalation to the control room, a competent person and emergency services for suspect items.
Agilient designs screening protocols, operator competency, mail-handling procedures, escalation pathways and rehearsal programs.
- ARPANSA radiation protection
- PSPF Counter-Terrorism
- AS 4801 mail handling guidance
Turnstile / speed-gate
A lobby control that enforces one person per credential using an optical speed-gate, full-height turnstile or similar barrier.
Reception is often the busiest boundary. Turnstiles make access rules enforceable and reduce tailgating without relying only on staff challenge.
Works with card or biometric readers, visitor management, CCTV, tailgate alarms and accessible entry routes.
Agilient assesses barrier type, reader pairing, throughput, queueing, accessibility and integration with visitor procedures.
- AS/NZS 2201 access control
- Disability Discrimination Act / DDA accessibility
Internal road & approach geometry
The vehicle route from the outer gate to the building drop-off, including curves, gradients, kerbs, sightlines and speed-control features.
A straight, fast approach gives an attacker momentum. A shaped approach slows vehicles, improves verification and gives barriers time to work.
Road geometry should align with stand-off distance, bollard ratings, gate timing, ANPR capture, CCTV coverage, lighting and pedestrian crossings.
Agilient assesses vehicle speed, mass and angle, then designs chicanes, kerbs, planters, bollard sequences and civil hand-off requirements.
- AS 3845 road safety barriers
- PAS 68 / IWA 14 HVM
- PSPF Counter-Terrorism
- ASIO Technical Notes (vehicle access)
Inner-perimeter boom / secondary access control
A second vehicle control inside the fence, usually a boom with card, fob or ANPR verification.
It separates public visitor movement from staff, delivery or authorised-vehicle areas, adding a second decision point before the building.
Works with access control, ANPR, CCTV, gatehouse procedures and refusal workflows, with a safe way for denied vehicles to turn around.
Agilient reviews boom location, reader choice, ANPR pairing, gatehouse integration, refusal handling and control-room workflow.
- AS/NZS 2201 access control
- AS/NZS 62676 CCTV
- PSPF Physical
Visitor / staff car park (outer perimeter)
Car parks sit in the outer perimeter but often become a site's most exposed public interface. They need to protect people, vehicles and the transition into the building through clear sightlines, bright lighting, CCTV, controlled access, help points, patrol routes, emergency call points and a safe path to reception or the staff entry.
Vehicle theft, theft from vehicles, vandalism and personal-safety incidents are common Australian risks. Staff and visitors can be most vulnerable in car parks because they are open, lightly supervised and used early morning, late evening or after shifts. Secure parking is not just amenity; it is part of WHS duty of care, visitor confidence and the organisation's first impression of security.
Car-park controls should work as a joined system: lighting designed for CCTV performance, cameras covering entries/exits/aisles/payment or help points, controlled access through boom gates, cards, PINs, mobile credentials or licence-plate recognition, duress and intercom points linked to the control room, patrols focused on high-risk times, and clear pedestrian routes from parking to the controlled building entry.
Agilient reviews car parks against the actual operating risk: public visitor flow, staff shift times, known crime patterns, vehicle mix, disability access, payment or ticketing locations, sightlines, lighting levels, camera coverage, patrol response, duress/help-point spacing, after-hours escorts and integration with access control or licence-plate recognition. Outputs are practical: quick wins, design changes, technology requirements and operating procedures.
- AS 1158 lighting for roads and public spaces
- AS/NZS 62676 CCTV
- AS 4485 workplace duress
- WHS Act 2011
- ISO 22341 CPTED
- AS 2890 parking facilities
Speed bump / traffic calming
Speed bumps, raised crossings, rumble strips and signs that force slower vehicle movement on internal roads.
Traffic calming makes other controls work. A slow vehicle is easier to read, challenge, stop and separate from pedestrians.
Should align with HVM ratings, road geometry, ANPR capture, pedestrian crossings, lighting and emergency vehicle access.
Agilient designs traffic-calming layouts with HVM, access control, pedestrian safety and civil engineering requirements in mind.
- AS 2890 parking facilities
- AS 3845 road safety barriers
- PSPF Counter-Terrorism
Pedestrian path & approach
The staff and visitor walking route from parking or the site entry to reception or the controlled staff entry.
A good path uses CPTED before technology: clear sightlines, no concealment, visible ownership and safe movement after-hours.
Lighting, CCTV, duress, intercoms, landscaping, accessibility and wayfinding should all support the same safe route.
Agilient reviews pedestrian routes for CPTED, lighting, camera coverage, after-hours safety, accessibility and practical route changes.
- ISO 22341 CPTED
- AS 1158 lighting
- AS 1428 accessibility
Secure Building Areas and Room Classification
Server room
Z3 / Z4 — Secure
The technology core of the building: servers, storage, network equipment and the services that keep them running.
If this room is compromised, physical access can undermine many logical controls. Hardware trust starts with room control.
Agilient reviews room construction, access control, monitoring, environment, fire suppression, out-of-band management and DR dependencies.
- TIA-942 data centre
- ISM physical security
- PSPF Physical Z3 / Z4
- AS 3555 forced-entry resistance
Comms room
Z2 / Z3 — Working / Secure
The point where trunk cabling, distribution switches and active network gear connect to the rest of the floor.
A neglected comms room gives insiders or contractors a place to tap, mirror or damage networks without passing through normal cyber controls.
Agilient reviews locks, alarms, tamper detection, contractor access, monitoring and current access entitlements.
- AS/NZS ISO/IEC 11801 cabling
- ISM physical security
- PSPF Information Security
Secure room / SCIF
Z4 / Z5 — Highly Secure
A certified room for classified information, with rated construction, acoustic and RF treatment, approved locks and certified containers.
For classified work, the room is part of the asset. Construction, certification and staff procedures all have to align.
Agilient prepares wall, RF, acoustic, container and access-control design inputs for SCEC-endorsed certifier hand-off.
- ASIO Technical Notes 5/12 SCIF
- PSPF Information Security
- AS 3555 forced-entry resistance
Executive office
Z3 — Secure
Senior leadership space where sensitive conversations, documents and high-profile people often converge.
Executive offices can attract intelligence, media, protest or personal-safety risk, while also hosting sensitive decisions.
Agilient reviews layout, acoustic and visual privacy, secure storage, handling routines, awareness and crisis-team links.
- PSPF Personnel
- PSPF Information Security
- WHS Act 2011
Security control room
Z3 — Secure
The operating point where CCTV, access control, alarms, duress, intercoms, lighting and response contacts come together.
A control room turns separate systems into decisions. Without it, alarms can be missed and cameras only become evidence after the event.
Agilient designs control-room layout, consoles, integration, procedures, shift handover, emergency links and provider performance measures.
- ISO 11064 ergonomic design of control centres
- ISM monitoring controls
- ASIAL Class 1 / 2 licensing
Open-plan office
Z2 — Working
The general working zone for desks, meeting rooms and collaboration areas.
This everyday area often contains the most people, laptops, screens and routine sensitive handling, so small control failures matter.
Agilient reviews clean-desk rules, screen privacy, visitor escort, after-hours work, duress placement and staff-safety needs.
- PSPF Information Security
- PSPF Personnel
- WHS Act 2011
- AS 4485 workplace duress
Reception / lobby
Z1 — Public
The first transition from public to controlled space, covering visitor management, screening, identity checks and escort hand-off.
Reception is where pretexting, tailgating and hostile-customer incidents most often meet staff.
Agilient designs reception protocols, visitor flow, behavioural detection training, screening, turnstile integration and staff-safety procedures.
- PSPF Personnel
- PSPF Counter-Terrorism
- AS/NZS 2201 access control
- WHS Act 2011
Visitor waiting
Z1 — Public
The public waiting area after sign-in and before escort or screening is complete.
A well-designed waiting area gives staff time and visibility before access is granted; a poor one creates a dwell point for risk.
Agilient reviews sightlines, seating, screens, duress, CCTV coverage and escort-call procedures.
- PSPF Counter-Terrorism
- CPTED principles
- WHS Act 2011
